Altius™
Cemented Hip Replacement System

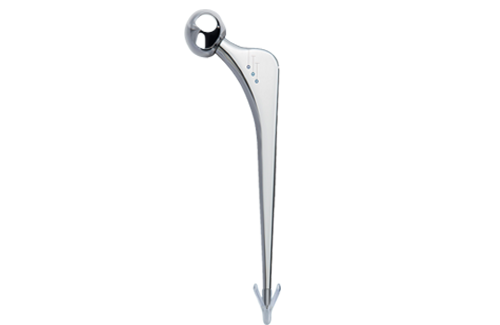

Altius is cemented double-tapered stem manufactured in High-nitrogen Stainless Steel ( HNS ), provided with a PMMA / UHMWPE distal centraizer to facilitate stem positioning and uniform cement mantle distribution.
Key Benefits
Highly polished
finishing provides
a cement-friendly
surface which
optimizes the transfer
Double-tapered design
provides axial and
rotational stability
Material :
Forged HNSS Stem
Sourced from Shefield, U.K.
Highly Polished HNS Head
Sourced from
Schwerte, Germany
Sizes Available:
Dia 22mm (0, +4, + 8)
Dia 28mm (-4, 0, +4, +8)
Polished surface
of the neck minimizes
soft tissue damage and
liner wear, designed
with 12/14 taper
Three depth markings
spaced 4mm apart
allow for the
correction of the leg
PMMA/UHMWPE
Distal centralizer aids
stem positioning and
optimizes load
transfer length
Clinical History
The Collarless, Double-tapered, Highly Polished Design that inspired the Cemented stem has proven successful for more than 45 years of Hip Replacement.
As a collarless stem, intra-operatively ALTIUS facilitates surgeons to accommodate most patient anatomies and indications, including fracture and primary cases. It may be chosen as, either Total or Partial Hip Replacement system in surgeon's practice.
User Friendly Design
Three depth markings spaced 4 mm apart are etched on the proximal part of the ALTIUS stem.
The markings allow for the correction of the leg length by adjusting the depth of the stem insertion.
The same markings are also indicated on the rasps. Winged PMMA / UHMWPE distal centralizer that facilitates the stem positioning and optimizes the load transfer.
Sizing Chart
ALTIUS - Hip Femoral Side Options
Cemeneted Hip Femoral Stem Sizes | 0 | N1 | N2 | N3 | S2 |
---|---|---|---|---|---|
Stem length( mm ) | 127 | 149 | 149 | 149 | 149 |
Offset(mm) | 36 | 38 | 38 | 38 | 44.5 |
Neck Angle | 125° |

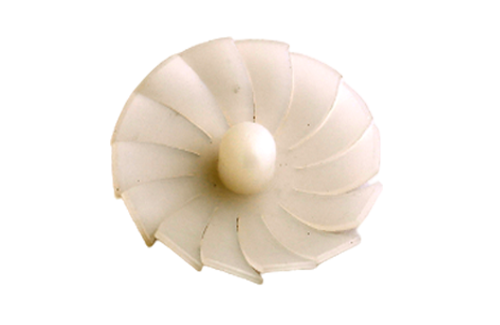

ALTIUS IM plug ( UHMWP )
Size( Dia) | 8 | 10 | 12 | 14 | 16 |
---|---|---|---|---|---|
Length ( mm ) | 14.5 | 14.6 | 17.5 | 20 | 24.5 |
ALTIUS - Hip Acetabular Side Options

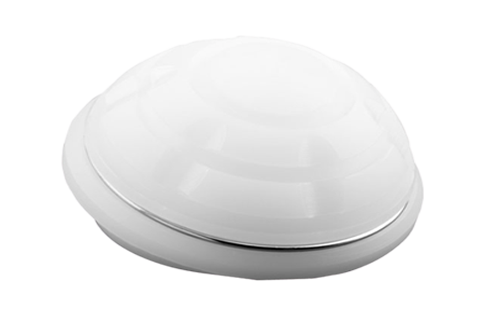

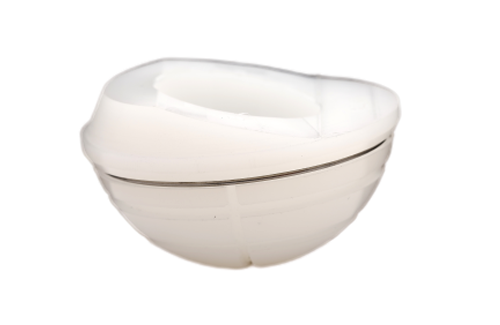

Hip Allpoly Acetabular Cup (OD in mm) | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 |
---|---|---|---|---|---|---|---|---|---|---|---|
Hip Femoral Head ( OD in mm) | 40 | 22 | 22 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
Hip Femoral Head Offset (mm) | 0 ,+4 , +8 | -4 , 0 ,+4 , +8 |
Extra Resources
Altius Product Manual |
