Buechel-Pappas™
Primary Knee System
CoCr
Collaboration
In 2009, BP™ trust, USA decided to transfer the advanced technology to TTK Healthcare Ltd., a total healthcare company. BP™ Trust is a pioneer in the development of Joint Replacement Technologies and they are strongly focussed on Research and Development activities.
Both TTK Healthcare and BP™ trust agree on the importance of R&D and share a common interest to provide the best possible Joint Replacement solutions designed for Patient benefit.
BP™ Trust and TTK Healthcare will improve the technology for joint replacement through the most effective collaboration..
We Balance Gaps!
Overview
- 3rdGeneration New Jersey Knee
- High Flex Design
- Designed for ROM upto 162° Flexion
- Ultra congruent Deep Dish Design for Low Contact Stress
- Mobile Bearing platform
- Stop Pin in Tibia to prevent Spin out
About Buechel Pappas Knee
Based on experience with the LCS, Dr.Buechel and Pappas have refined the design and have came out with B-P™ Total Knee System
Proven Design
The superior engagement of the B-P™ tibial bearing with the femoral component makes the use of a posterior stabilized (PS) device unnecessary. Since PS devices are characterized by highly excessive post against cam stresses, lack of axial rotation, failure in providing full flexion and other problem, such devices are undesirable.
This system, including the revision knee system, contains a wide variety of components allowing optimal treatment of a wide range of pathologies.
An integrated system provides a great number of surgical options. In the event of the need for the revision of a component of an integrated system, the need to remove properly functioning, well fixed, components is eliminated.
Product Details

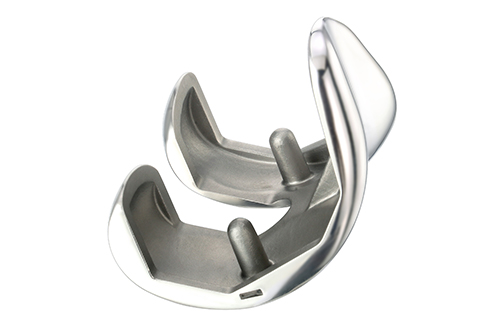

Femoral Component
- Designed to replace the complex geometry of the femoral articular surface while maintaining an anatomical valgus angle.
- The radii of curvature decrease from anterior to posterior in a coordinated fashion to provide full flexion
- Maintaining excellent bearing congruity with the tibial component.
- Its geometry also congruently accommodates varus-valgus and rotary motions as well as providing congruent contact for the patellar components or the natural patella.
- Improved articulating surface accuracy and fit improve the congruity of the articulating surfaces in the B-P™ component.
- Material : Cobalt Chromium
Mobile Bearing
- Ultra congruent- Deep Dish Design for Low contact stress
- Excellent bearing congruity and superior dislocation resistance is provided.
- These bearings come in a variety of thicknesses to allow flexibility in bone resection of the tibia, to correct gross deformities.
- Material : UHMWPE

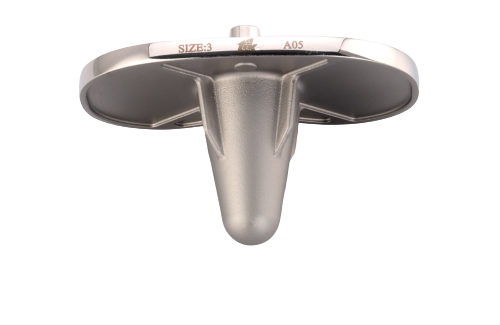

Tibial Component
- This plateau is intended for use with the Tibial Bearing.
- Stop-pin mechanism provides ±45° axial rotation which allows normal activity
- Engages only in the event of bearing subluxation.
- Material : Cobalt Chromium
Patellar Component
- Congruently matches the spherical anterior flange segments and sulcus of the femoral component.
- Allows for variations in anatomical position as well as surgical misalignment
- Anatomical tracking of Patella
- Material : UHMWPE

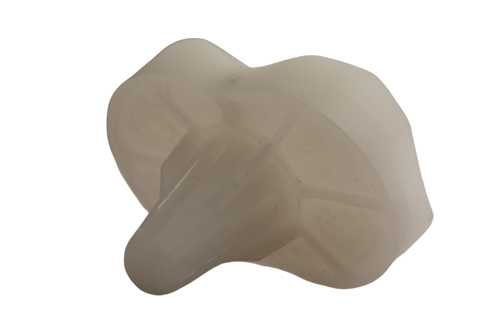

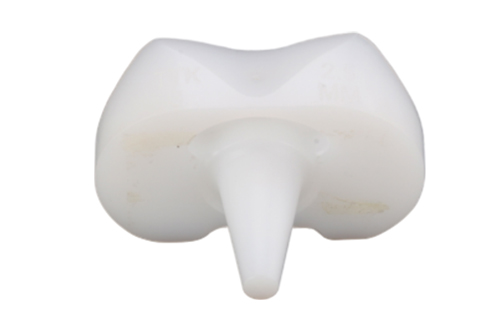

All Poly Tibial Component
- Medial Pivot High flex Design.
- Provides upto 20° axial movement
- This device is superior to other competitive products in use with regard to providing lower contact stresses.
- Material : UHMWPE
Extra Resources
| 31 Year Evolution of the Rotating-Platform | |
| BP Knee Surgical Steps | |
| Buechal Pappas Surgical Steps Illustrated | |
| Buechel Pappas Product Manual | |
| CE Full Quality Assurance Certificate | |
| CE Design Certificate | |
| Implantation Test summary | |
| IFU |
   |
Longterm Rotating Platform Studies
- Buechel FF et al Ortho. Rev. Suppl. (1990)
- Sorrells RB. Orthopedics Vol 19 (1996)
- Buechel FF et al. CORR No 388 (2001 )
- Hamelynck KJ. & Stiehl JB. LCS Mob. Brg Knee Arthro. A 25 Yrs Worldwide Rev (2002)
- Buechel FF et al. JKS Vol 15 No 2 (2002)
- Huang CH et al. CORR No 416 (2003)
- Kim YH et al. JBJS 86-A, No 6 (2004)
- Callahan et al. JBJS 87-A, No 9 (2005)
- Mockford BJ & Beverland DE. JOA Vol 20 No 7 (2005)
- Fehring TK. Orthopedics Vol 29, No 9 Suppl (2006)
- Ali MS & Mangaleshkar SR. JOA Vol 21 No 1 (2006)
- Sorrells RB et al. The Knee. Chap. 14 (2007)
- Kim YH et al. JOA Vol 24 No 4 (2009)
- Dennis et al. JBJS 91-A, Suppl 5 (2009)
- Callahan et al. JBJS 92-A, No 7 (2010)
- Kim YH et al. JBJS 94-A, No 10 (2012)
- Buechel, FF et al. ASTM Int’l (2012)
- Milligan DJ et al. The Knee (2019)
